The TruckSeries Advantage

When it comes to diagnosing and repairing electrical systems these days it can be tricky. At first glance everything appears to look good, so then why doesn’t it work? That’s where Mitchell 1’s TruckSeries truck repair information comes in, as it gives you the advantage you need to quickly diagnose any issue and complete the repair without replacing unnecessary components. For example, let’s take a look at everything provided in TruckSeries to repair a simple license plate light.

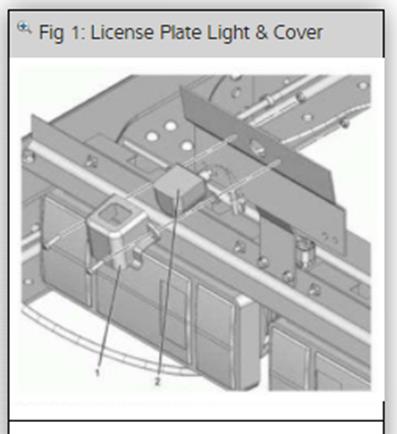

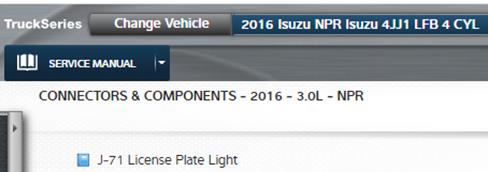

Component locations and wiring diagrams

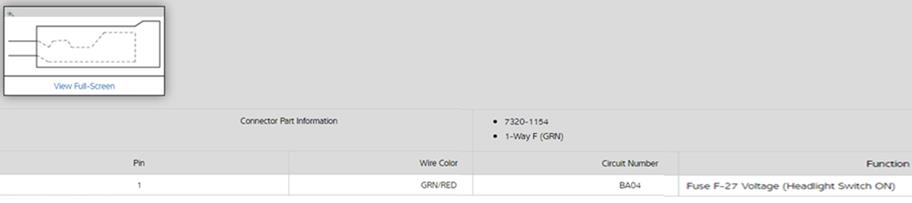

Connector views and tables provide wire colors, pin identification and locations in connector, circuit numbers and fuse information.

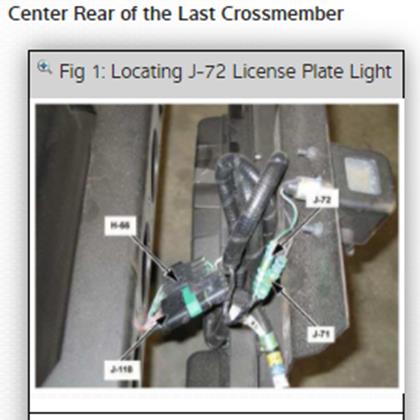

Connector location and identification helps a technician identify locations as well as assist in locating and identifying connector numbers.

Fuse box location and fuse identification provide quick access to fuse and relay information. Relay graphics identify circuit diagram and terminal identification.

Remember, this is just a simple license plate repair. As you can see TruckSeries truck repair information provides all the information needed to help you diagnose and repair that pesky electrical system issue. In today’s information era there is no reason to grab your test light and head in there “blindly” and just hope for the best. You may just think this is a simple repair, but  taking just a few minutes to review and familiarize yourself with all the information TruckSeries has to offer you may just save you some time.

Want to learn about TruckSeries?

Request a FREE DEMO today!

You may also like to read:

Diesel Fuel Contamination Signals and Your Repair Information

Keep Your Diesel Exhaust Fluid From Voiding Your Warranty

Ultrasound Fluid Testing Helps Detect DEF Quality

About the Author

Bruce Cansler

Bruce Cansler started his automotive career in 1973 as a technician for Datsun. He retired from the U.S. Navy as a Seabee Construction Mechanic with 20 active years of service and 10 as a reservist, then spent time working in Ford, Lexus and Caterpillar dealerships. Bruce has obtained ASE certifications in both cars and medium/heavy trucks and has worked with the Commercial Vehicle Group at Mitchell 1 since 2009.
